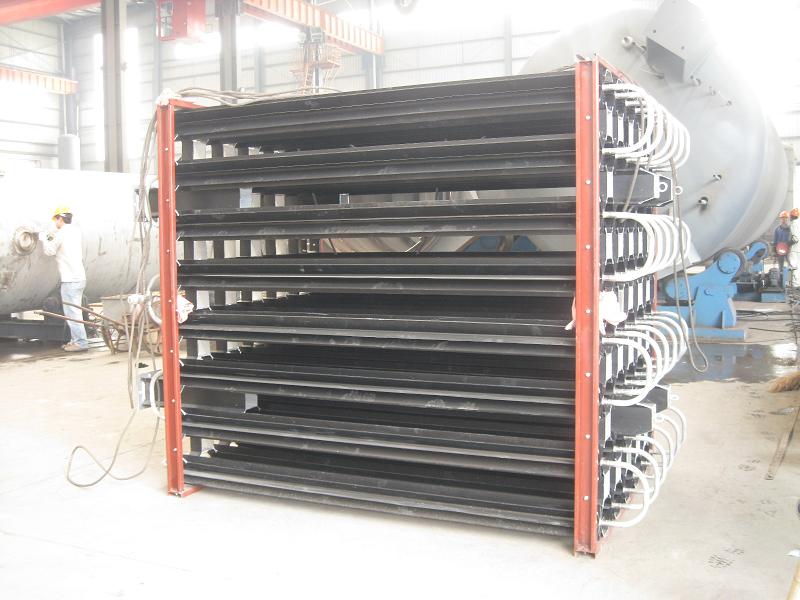

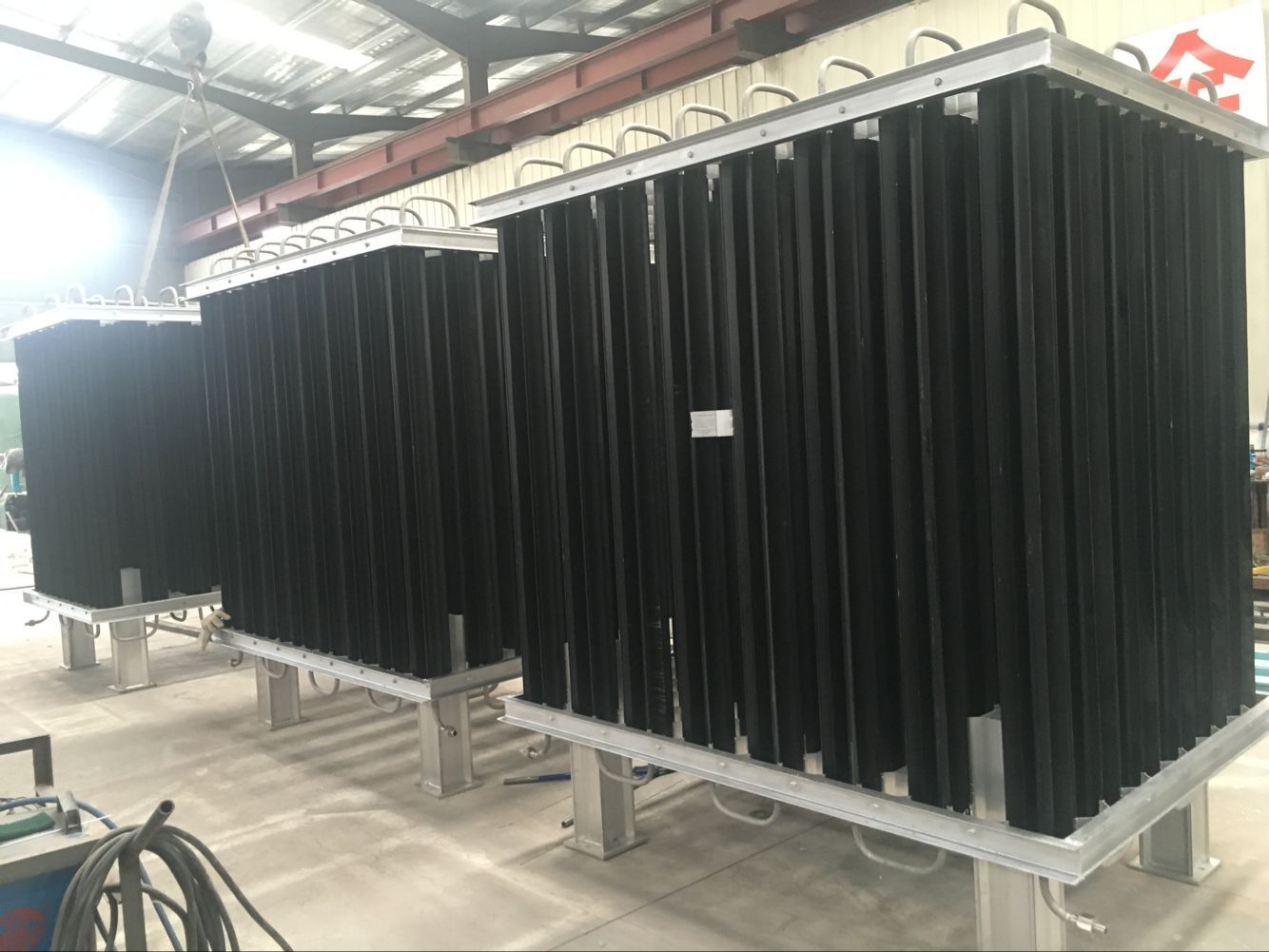

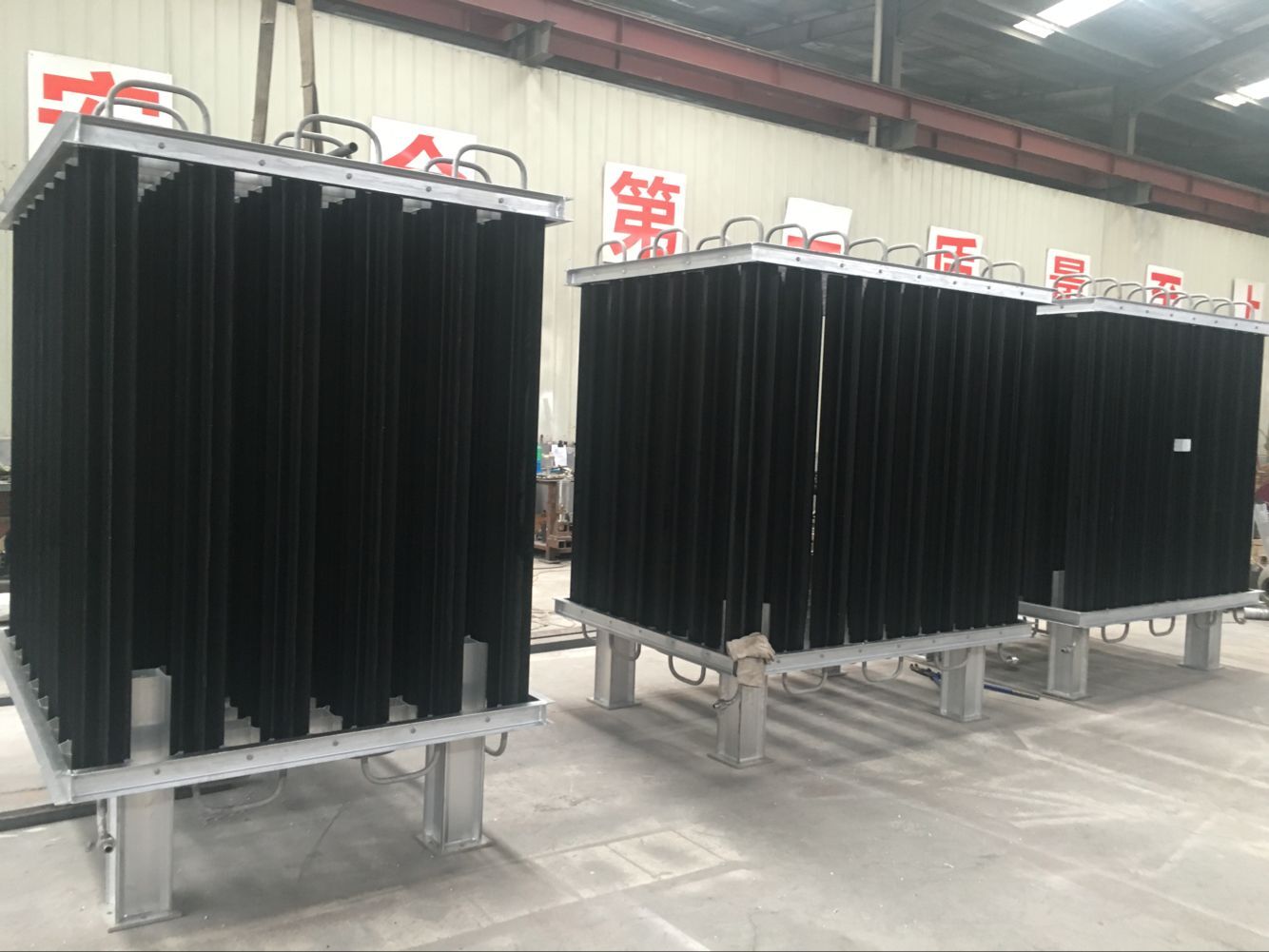

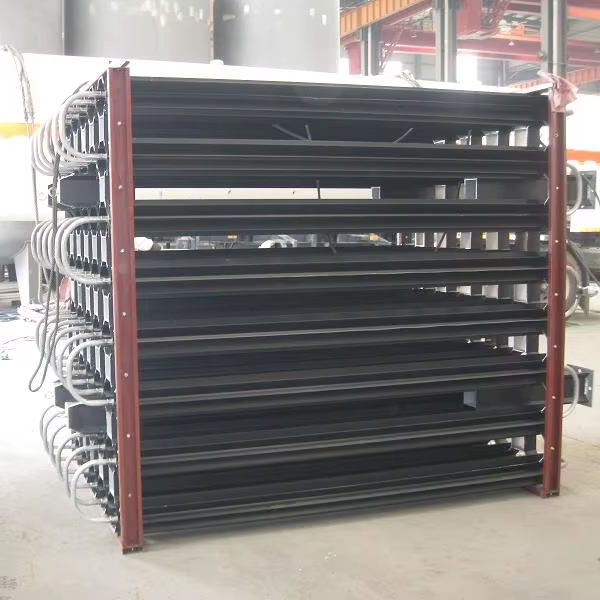

The ambient air vaporizer asks for no assistance from other electric heating equipment. The air heated vaporizer is highly efficient, eco-friendly and energy saving. It enjoys wide applicability and high vaporization rate.
The fin is made of high quality aluminum materials, there will be no ice bending problem. It has large heat transfer area and high efficiency.
The stainless steel pipe is thick and solid. The welding workmanship goes through nondestructive testing. All the finished evaporators pass nitrogen leakage test and their strength is proved by water pressure test.
| Product name | Air Heated Ambient Industrial Vaporizers | ||
|---|---|---|---|
| Model | Maximum evaporation (Nm³/h) | Maximum working pressure (Mpa) | Empty weight (kg) |
| QQ-50/25 | 50 | 2.45 | 100 |
| QQ-100/25 | 100 | 2.45 | 185 |
| QQ-150/25 | 150 | 2.45 | 245 |
| QQ-200/25 | 200 | 2.45 | 350 |
| QQ-500/25 | 500 | 2.45 | 610 |
| QQ-1200/25 | 1200 | 2.45 | 2100 |
| QQ-1400/25 | 1400 | 2.45 | 2250 |
| QQ-2000/25 | 2000 | 2.45 | 3220 |
| QQ-4000/25 | 4000 | 2.45 | 5500 |
Contact us today to receive the latest product catalogues and technical specifications.
As a top two brand in cryogenic equipment with almost 50 years history, We specialize in producing air separation units, LCO2 recovery plants, LNG plants, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), cryogenic mobile tanks, semi-trailer tankers, vaporizers, gas filling stations, gas cylinders and dewars, dry ice making machines, dry ice blasting machines and cryogenic pumps etc.
In the gas equipment field, we are proficient in both design and manufacture, enjoying a good reputation worldwide. By our consistent efforts, we turned the invisible air into visible brilliance. With 50 years of experience, we can provide customers with a complete range of products and the most professional services. Taking advantage of the group company structure, we have an in-depth and comprehensive understanding of market. Customers can get all they need at one-stop purchase.
Professional staffs are employed to serve the customers. The high quality and low price can ensure the customer dominating the marketing.
We are proud to have an experienced and passionate elite team. We have always been a pioneer in the industry, to keep competitive in the world market. Our team will be constantly committed to exploring the gas field, providing customers with a variety of tailor-made solutions for air resource exploitation.
We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, LPG and LNG filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.
Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards. We have obtained A2, C2, and C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe & Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate, and U Stamp, meaning we can manufacture under ASME standard upon request.
Our GB standard on PV is equivalent to ASME VIII, and GB electrical standards are equivalent to IEC standards for electrical products. European countries also use equivalent Chinese standards as per WTO rules (e.g. DIN-Standards, VDI/VDE-Regulations, IEC-Standards, AD-Specifications, UVV-Regulations). We can provide document specifications detailing the relationship between GB150 and ASME on request.

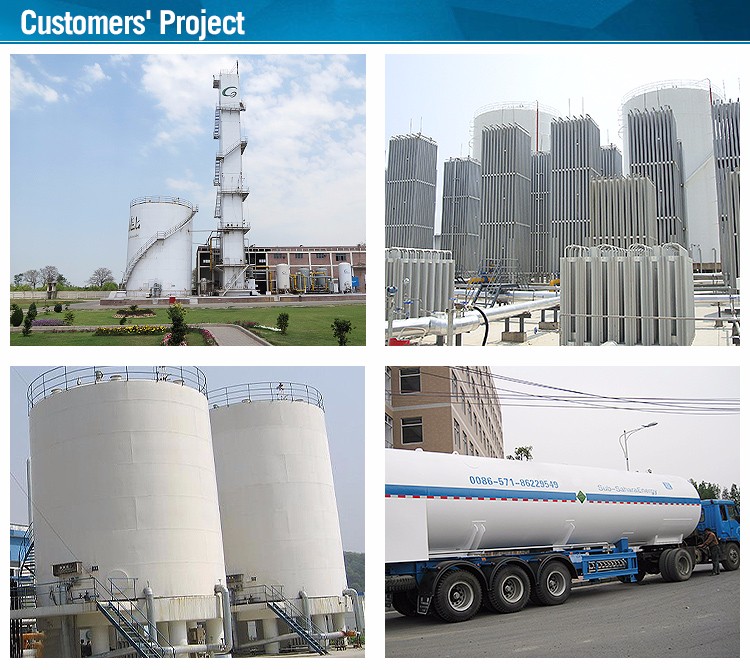

Yes, our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is a 3000m³ ordinary pressure storage tank. We also make high-pressure storage vessels, such as 100m³ LCO2 tanks and 10m³ (20m³, 30m³) LO2/LN2/LAr tanks.

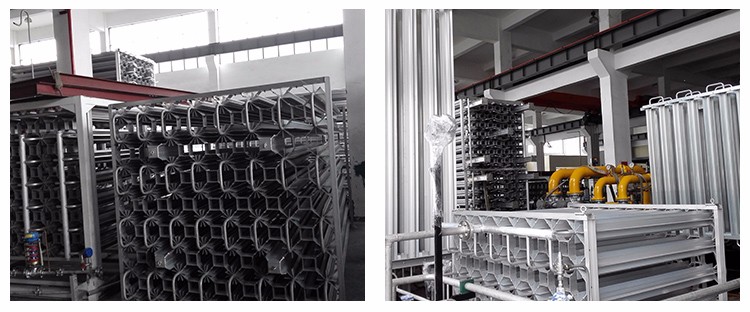

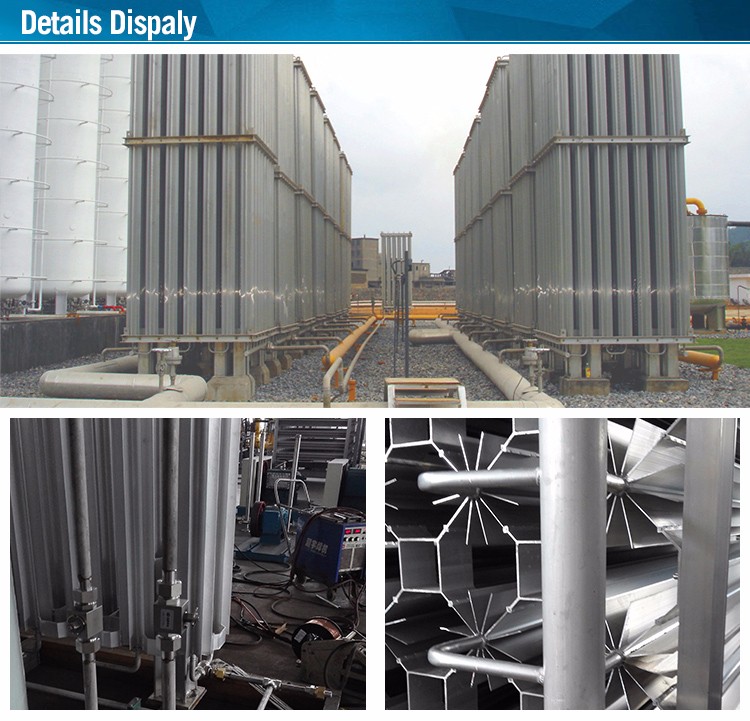

The vaporizers feature a bridge connection of star-shaped fin pipe with a large diameter for a stable structure, zero energy consumption, construction from anti-rust aluminum with a service life over 20 years, low pressure drop, safe flow speed control, and clean processing according to oxygen standards.
Ambient air vaporizers require no auxiliary electric heating equipment, making them highly efficient, environmentally friendly, and energy-saving. They feature high quality aluminum fins that prevent ice bending and offer a large heat transfer area for optimized vaporization rates.
